equiwet200EquiWet 200 location fixtures give optimal performance and longevity with a host of features that set it apart from standard vapor tights. Starting with a fiberglass housing with a continuous poured, closed cell gasket to the U.V. stabilized polycarbonate lens, the EquiWet can survive in wet and dusty locations. With an overall height just over 4 inches, the EquiWet can be mounted flush to your ceiling or by a pendent. The EquiWet also comes standard with stainless steel mounting clips so the fixture can be mounted without drilling into the body.


Reflector Material: Optional Formed 95% Enhanced Anodized Aluminum

Lamp Types: T5HO and T8

Lens Options: Polycarbonate and acrylic

Latches: Polycarbonate (Stainless Optional)

Height: 4.13 in.

Length: 51.3 in., 99.5 in, or 27.75

Width: 7.33 in. (optional one lamp, 4.56)

1/2 in. KOs: End panels, each end on top

Mounting: Dual Pendant, Surface Mount with supplied clips

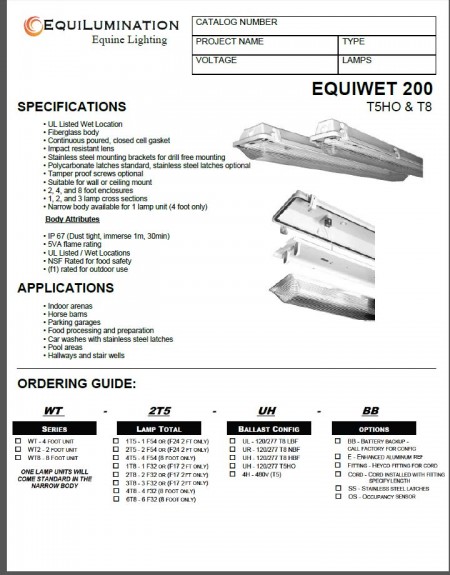

Download PDF
